The new modular data recorder compactly offers you a wide range of functions. Due to the small design and the use of rechargeable batteries, you can measure almost anywhere.

The gt⁠4 series is designed for recording with the Acoustic Camera as well as for measurements with up to 100 sensors.

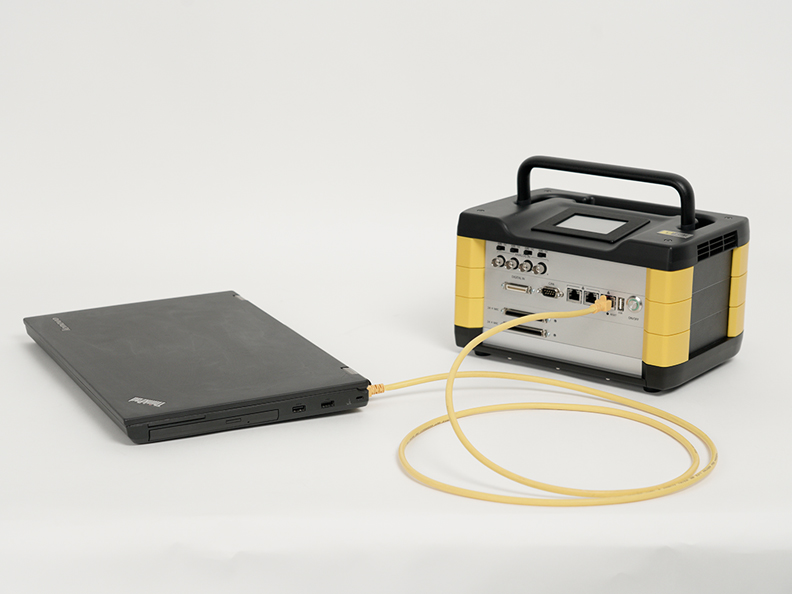

Measurements can be triggered quickly and easily via the integrated touch display, while the connected PC can be located at another place.

The Modular Data Recorder gt4 Series

The new data recorder gt4 series offers you a wide range of options for measuring your sound and vibration signals.

Connect up to 112 channels to gt4 and record signals with a maximum sampling rate of up to 192 kHz.

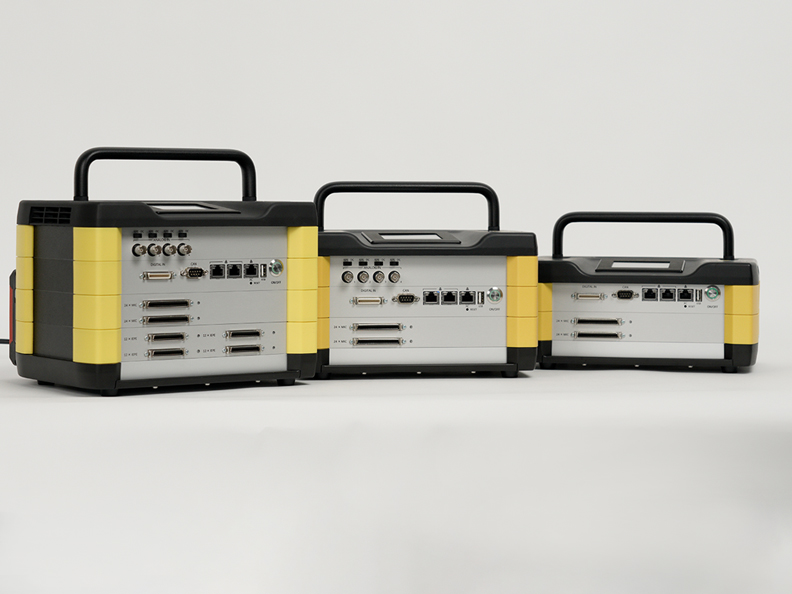

Thanks to the modular design, you can adapt the data recorder exactly to your requirements. The entry-level models gt4-10 and gt4-01 have 24 channels for connecting a microphone array or 24 IEPE sensors.

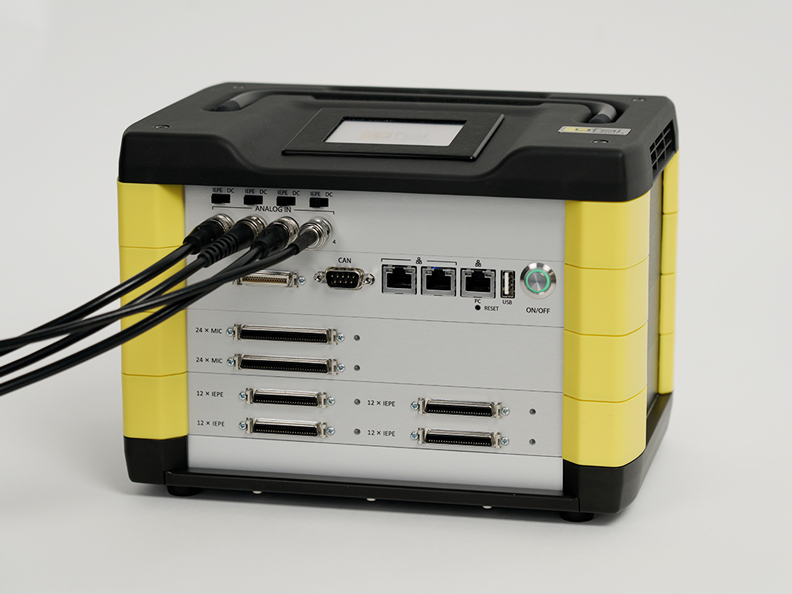

Fully equipped, the gt4 offers you a total of 112 channels: 96 microphone or IEPE channels, 12 digital inputs and 4 isolated analog inputs (voltage-supplied or current-supplied).

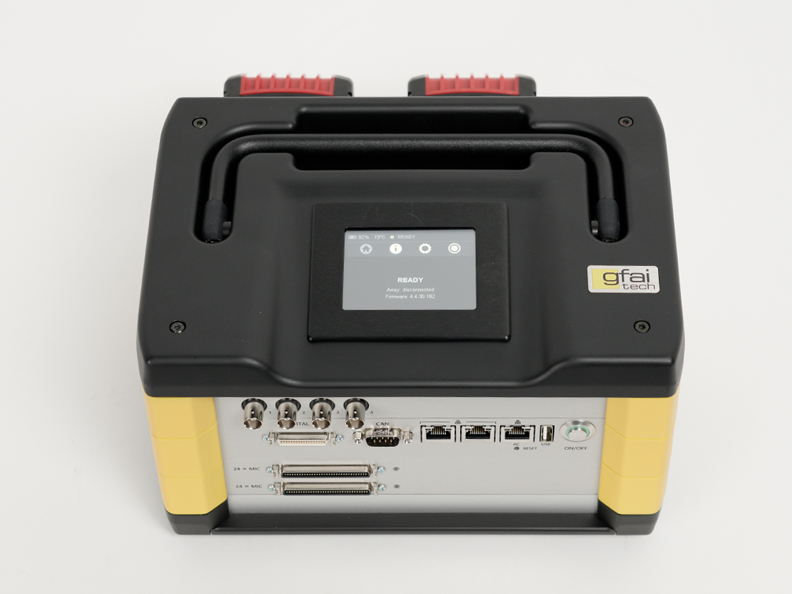

The integrated display shows you the most important operation parameters of the data recorder.

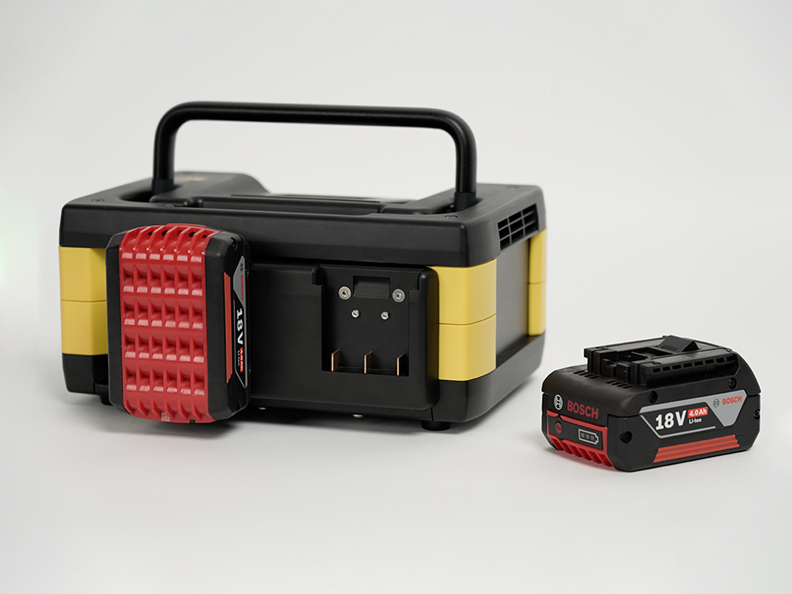

Run it mobile with two Bosch battery packs or use the power supply.

Parallel operation of multiple arrays is implemented.

Dimensions270 x 200 x 193 mm (W x L x H) max. without batteries
Weight> 1 kg without batteries
Microphone channelsup to 96 time-synchronized analog channels
(4 cards with 24 channels each)
IEPE channelsup to 100 time-synchronized, analog channels
Sampling rate

microphones: 24 – 192 kS/s (32 Bit)
digital: 48 – 6144 kHz
IEPE: 24 – 192 kS/s (32 Bit)

Interface1 Gbit Ethernet PC interface streaming capabilities
Digital input12 digital channels; (48 kHz – 6.14 MHz) 4 BNC adapters included
CAN bussupport of CAN bus data in NoiseImage
Ingress protection codeIP20
Cable length to array
Cable length to notebook
up to 20 m (on request: 50 m)
50 m for 1 Gbit Ethernet

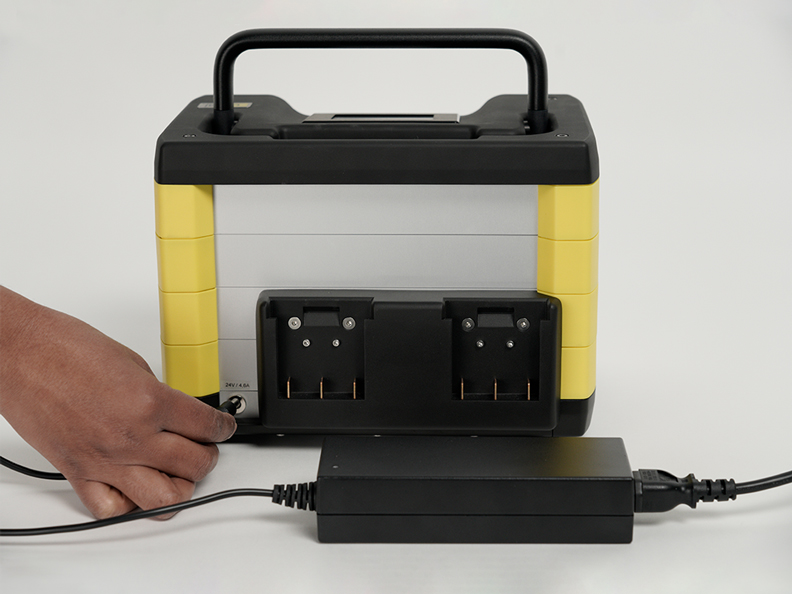

Power supply24 V with power supply unit 100 -240 V, 2 batteries
Operating environment-15 °C – 55 °C, up to 80 % RH

Measurement cards (optional)
DMCADC45024 differential analog inputs
DMCAIC45024 analog inputs for IEPE sensors
DMCAI4024 isolated analog inputs



  • Modular
  • Small
  • Light
  • Battery operation or mains operation
  • Integrated touch-display
  • Designed for use with Acoustic Camera and vibration sensors
