Mechanical vibrations occur throughout nature and in our daily lives. They affect the safety, durability and usability of structures. Vibration analysis and vibration optimization are therefore of high technical importance. There are more and more challenges related to vibrations including:

  • Increased efficiency of materials and structures: dynamic loads increase with power density
  • Higher demands on comfort and immission control
  • High demands on reliability and high costs related to outtages

Our structural dynamic solutions help you to understand and solve these problems. We provide you with state-of-the-art technology to perform the vibration tests you need.

Structural Dynamics Software

The vibration analysis software WaveImage supports you in structural dynamics analysis – with modest technical effort and expert knowledge. This software suite offers everything you require for mechanical vibration analysis and is based on the knowledge from many years of application, feedback from our customers and our own research and development. With vibration analysis software WaveCam we offer a solution to significantly reduce the effort of data acquisition and analysis as well as the required level of expertise due to a high level of automation. The easiest way to produce meaningful and compelling results.

New

Vibration Analysis
with WaveCam

The perfect tool for non-contact and high-resolution vibration measurements for experts and beginners using video recordings. Perform ODS in the time and frequency domain. The camera independent data acquisition allows you to start testing right away. Extract time waveforms and spectra of displacement for every pixel in the image using optical flow.

Vibration Analysis with WaveImage

Evaluate or optimize your measurement data from vibration tests using the signal processing and operational deflection shape analysis (ODS) methods. In this software package, a variety of possible views are available for visualizing your measurement. At the same time, the data can be processed and the result analyzed as a mode shape on the geometry.

Modal Analysis with WaveImage

A unique combination of experimental modal analysis, operational modal analysis and numerical modal analysis (i.e. finite element simulation) is provided to determine the modal characteristics. The results of the vibration simulation can be compared with those of the vibration measurements and the simulation model can be adapted to the actual operating condition. All this is done with a single software.

Rotating Machinery with WaveImage

For the analysis and visualization of rotating machines: The order analysis in WaveImage allows a unique visualization of the vibrations depending on order or speed directly on the structure. State-of-the-art algorithms and a variety of visualizations are available. By using RPM Track, RPM signals can be reconstructed retrospectively from the vibration measurement.

Our Advantages

WaveImage is new to the market. That's good, it brings a breath of fresh air.

Easy Access

The structural dynamics software WaveImage is the tool of choice for getting started with vibration analysis. Even without expert knowledge we make you understand the complex context of vibrations in an easy way.

Customizable

Build your own customized views. Create your individual reports. The structural dynamics software WaveImage adapts perfectly to your workflow.

Big Data

State-of-the-art vibration measurement systems can easily record huge amounts of data. We offer you the tool to process and analyze this data. Whether it's a high-resolution laser vibrometry measurement, accelerometers or high-speed cameras measurements, WaveImage can do it.

Artificial Intelligence

The structural dynamics software WaveImage uses well-established state-of-the-art algorithms and optimizes them with artificial intelligence. High quality mode extraction has never been easier.

Realistic Visualization

High resolution textured animations on complex geometries from 3D scans or super intuitive photo geometries, the structural dynamics software WaveImage puts its focus on visualizing complex contexts in an easy way.

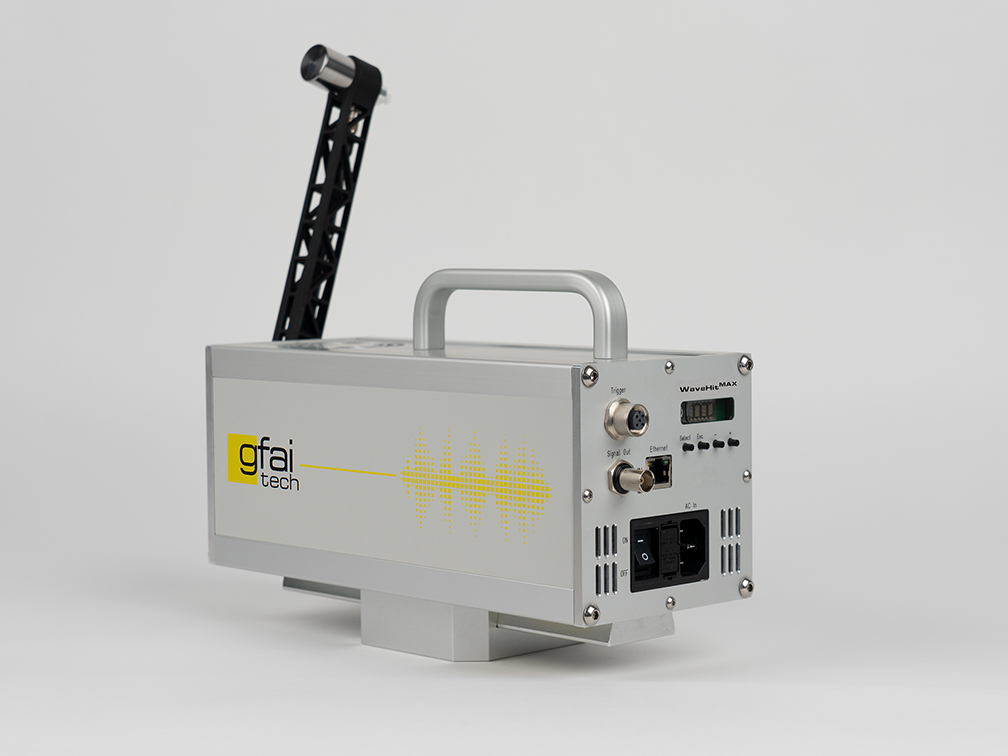

In addition to a wide range of options to analyze structural dynamics, we also offer the necessary measurement technology. From the first smart impulse hammer WaveHitMAX for structural excitation, as well as data acquisition of the structural response or operating vibrations. Data is acquired using high speed camera footage with WaveCam or with the mobile data recorder gt-432. Connect more than 100 synced sensors (e. g. accelerometers, microphones, rotational speed).
